SA 387 Grade Plate
Alloy Steel Plates SA 387 Suppliers, ASME SA 387 Alloy Steel Plate, Alloy Steel Plate Price List in India.
Manufacturer of Alloy Steel SA387 Plate in Mumbai, India

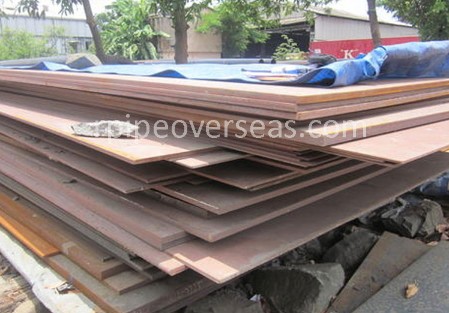

Original Photo Of Our Alloy Steel Plates Stockist In Mumbai, India.
Whether you need an offshore specification SA 387 Grade Plate in Singapore, SA 387 Grade Plate in Indonesia, or a pressure vessel plate in Saudi Arabia, we have floating stock of 800 ton Steel plates and logistical skills to deliver what you want when you need it.
At our stockyard / warehouse in Kalamboli, Navi Mumbai, Maharashtra, INDIA Steel Plates are available in a wide range of special metal grades like Manganese Steel, Alloy Steel, and Stainless Steel in numerous specifications. All Steel Plates Stocks are held to ASME, ASTM, EN, and API, Steel Plates are always available in surplus stock up to 15 metres long, 4 metres wide, and 300 millimetres thick. We are able to offer a solution to virtually any sourcing problem about Steel Plates.
R-Pipe Overseas is the only supplier of SA 387 Grade Plate, Hardox 400 Plate, Abrex 400 Steel Plate, Wear Resistant Steel, Sailhard Tiscral Las 07 Plate, Ar 400 Plate, High Manganese Plate, Hardfield Manganese Plate, Welten 780E Plate in India who delivered steel plates to Saudi Arabia in 3 days, to Sri Lanka in 2 days, to Iran in 8 days, to Singapore in 12 days, to Kuwait in 5 days, to United Arab Emirates in 3 days, to Japan in 10 days, to Qatar in 4 days, to Indonesia in 7 days & to Taiwan in 5 days. In Short R Pipe overseas has proven record that We are the only one who can supply Steel Plates to Gulf & Asian countries in minimum lead time, So If you want to buy SA 387 Grade Plate from reliable supplier & Steel Plates specialiest in INDIA, check our free quote with minimum delievery time to your country which you will receive within an hour.
SA 387 Grade Plate
The chrome moly plates are generally available in two specifications ASME SA387 and ASTM A387. The chemical and mechanical properties for ASME and ASTM plates are same and are described as "Standard Specification for Pressure Vessel Plates, Alloy Steel, Chromium-Molybdenum"
ASTM A387 Alloy Steel Plate Specification :
Thickness : 6MM to 300MM
Width : 1500mm to 4050mm
Length : 3000mm to 15000mm
Grade : A387 2, 5, 9, 11, 12, 22, 91
Application
- These plates are commonly used in the high temperature conditions for welded boilers and pressure vessels
Plates are available under these specifications in several grades each having different nominal Chromium (Cr) and Molybdenum (Mo) contents as follows :
| Grade | Nominal Cr Content (%) | Nominal Mo Content (%) |
|---|---|---|
| 2 | 0.5 | 0.5 |
| 12 | 1 | 0.5 |
| 11 | 1.25 | 0.5 |
| 22, 22L | 2.25 | 1 |
| 21, 21L | 3 | 1 |
| 5 | 5 | 0.5 |
| 9, 91 | 9 | 1 |
Each grade except Grades 21L, 22L, and 91 is available in two classes of tensile strength described as Class 1 and Class 2. The most regularly specified grades and hence those that are most readily available from stock are Grades 12, 11, 22, 5, and 9 and in most case stock plates will be produced to the tensile requirements of Class 2.
The following tables give information on the chemical and mechanical properties of all of the grades :
Chemical Requirements
(cast analysis, % by mass, maximum permitted unless indicated otherwise)| Gr. 2 | Gr. 12 | Gr. 11 | Gr. 22 | Gr. 22L | Gr. 21 | Gr. 21L | Gr. 5 | Gr. 9 | Gr. 91* | |
|---|---|---|---|---|---|---|---|---|---|---|
| C | 0.05-0.21 | 0.05-0.17 | 0.05-0.17 | 0.05-0.15 | 0.1 | 0.05-0.15 | 0.10 | 0.15 | 0.15 | 0.08-0.12 |
| Mn | 0.55-0.80 | 0.40-0.65 | 0.40-0.65 | 0.30-0.60 | 0.30-0.60 | 0.30-0.60 | 0.30-0.60 | 0.30-0.60 | 0.30-0.60 | 0.30-0.60 |
| P | 0.025 | 0.025 | 0.025 | 0.025 | 0.025 | 0.025 | 0.025 | 0.025 | 0.025 | 0.020 |
| S | 0.025 | 0.025 | 0.025 | 0.025 | 0.025 | 0.025 | 0.025 | 0.025 | 0.025 | 0.010 |
| Si | 0.15-0.40 | 0.15-0.40 | 0.50-0.80 | 0.5 | 0.50 | 0.5 | 0.5 | 0.5 | 1.00 | 0.20-0.50 |
| Cr | 0.50-0.80 | 0.80-1.15 | 1.00-1.50 | 2.00-2.50 | 2.00-2.50 | 2.75-3.25 | 2.75-3.25 | 4.00-6.00 | 8.00-10.00 | 8.00-9.50 |
| Mo | 0.45-0.60 | 0.45-0.60 | 0.45-0.65 | 0.90-1.10 | 0.90-1.10 | 0.90-1.10 | 0.90-1.10 | 0.45-0.65 | 0.90-1.10 | 0.85-1.05 |
| V | - | - | - | - | - | - | - | - | 0.04 | 0.18-0.25 |
Tensile Requirements
Class 1 Plates
| Grade | Tensile (MPa) | Yield (MPa) | Elong. (50mm) | Reduc'n of Area* |
|---|---|---|---|---|
| 2, 12 | 380 - 550 | 230 min | 22% min | - |
| 11 | 415 - 585 | 240 min | 22% min | - |
| 22, 21, 5, 9 | 415 - 585 | 205 min | 18% min | 40% min |
| 21L, 22L | 415 - 585 | 205 min | 18% min | 40% min |
Class 2 Plates
| Grade | Tensile (MPa) | Yield (MPa) | Elong. (50 mm) | Reduc'n of Area* |
|---|---|---|---|---|
| 2 | 485 - 620 | 310 min | 22% min | - |
| 11 | 515 - 690 | 310 min | 22% min | - |
| 12 | 450 - 585 | 275 min | 22% min | - |
| 22, 21, 5, 9 | 515 - 690 | 310 min | 18% min | 40% min |
| 91 | 585 - 760 | 415 min | 18% min | - |
SA 387 Grade Plate Price
- » steel plate sa-387 grade 11 class 2
Price : US $600-800 / Ton - » alloy boiler plate sa-387 grade 5 class 2
Price : US $600-800 / Ton - » Pressure Vessel Plate For Boilerpressure vessel asme sa 387 equivalent sa 285 gr b
Price : US $600.0-750.0 / Metric Tons - » Steel plates for boilers Pressure vessels sa 387 gr.12 equivalent
Price : US $600.0-750.0 / Metric Tons - » S235/S275/S355 High Quality alloy steel plate sa 387 Hot SALE Steel Plate astm a285 grade c plate
Price : US $469-598 / Ton
SA 387 Grade Plate Price in India
SA 387 Grade Plate
Material Grade: 5,9,11,12,22 Thickness: 0-1 mm, 1-2 mm, 2-3 mm, 3-4 mm, 4-5 mm
Check Price In India - Rs 130/ KG
Alloy Steel Plates SA 387
Minimum Order Quantity: 100 Kilogram
Check Price In India - Rs 150/ KG
ASME SA 387
We manufacture Alloy Steel Plates SA 387 for our clients.
Check Price In India - Rs 120 / Kilogram
SA387 Alloy Steel Plate
Material Grade:SA387 / A387 Size:5MM TO 100MM Size (feet X feet):1250 X 5000 / 6000 Thickness:0-1 mm, 1-2 mm, 2-3 mm, 3-4 mm, 4-5 mm, >5 mm, 5 - 20MM
Check Price In India - Rs 60/ KG
